Surface Ceiling Lights

Hybec · Outdoor Lighting

16 models, built for the weather.

IP-rated outdoor surface ceiling lights for soffits, porticos, covered terraces and balcony undersides — no recessed cavity required.

IP54 & IP65 16 SKUs Hybec catalogue by Hybec →

Where these get used

Applications & typical installations.

Most commonly used in the project types below — across homes, hotels, commercial spaces and landscape projects.

  • Entry portico ceilings
  • Covered terraces & balcony soffits
  • Outdoor passages and corridors
  • Carport and porte-cochère undersides
  • Hospitality outdoor lounges

A quick buyer's guide

How to pick the right one.

The things to think about when choosing the right model for your project — from weatherproofing to beam angle to how it gets mounted.

  1. 01 IP54 for sheltered soffits; IP65 for partially exposed locations
  2. 02 Round, square or downlight profile to match ceiling detail
  3. 03 Beam angle 90°–120° for ambient soffit lighting
  4. 04 Driver mounted internal or external depending on cavity depth

What's standard across the range

Built-in quality features.

  • Die-cast aluminium body, graphite/grey finish
  • Surface mount — no ceiling cut-out required
  • Integrated driver and LED
  • Bridgelux / Cree LEDs

In this range

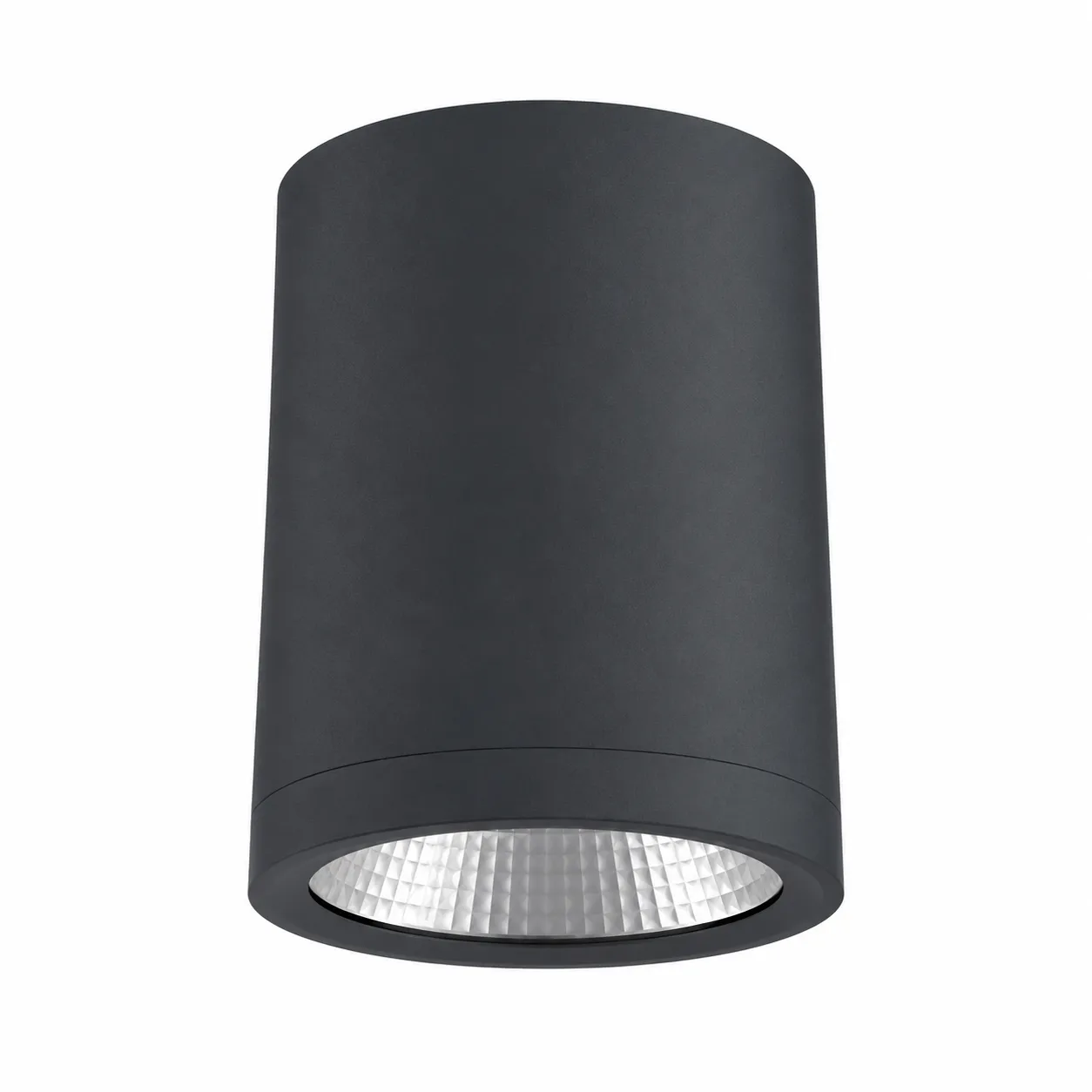

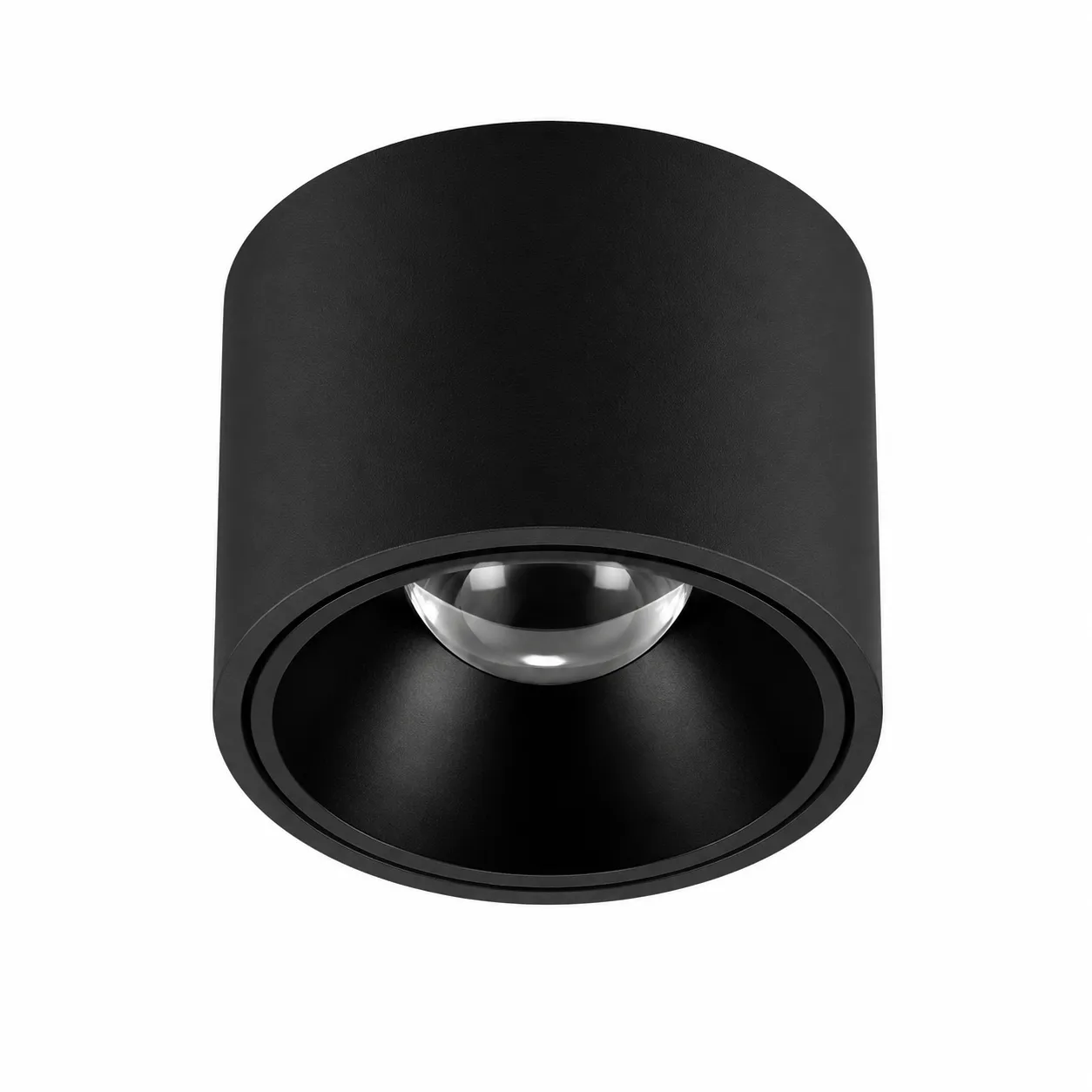

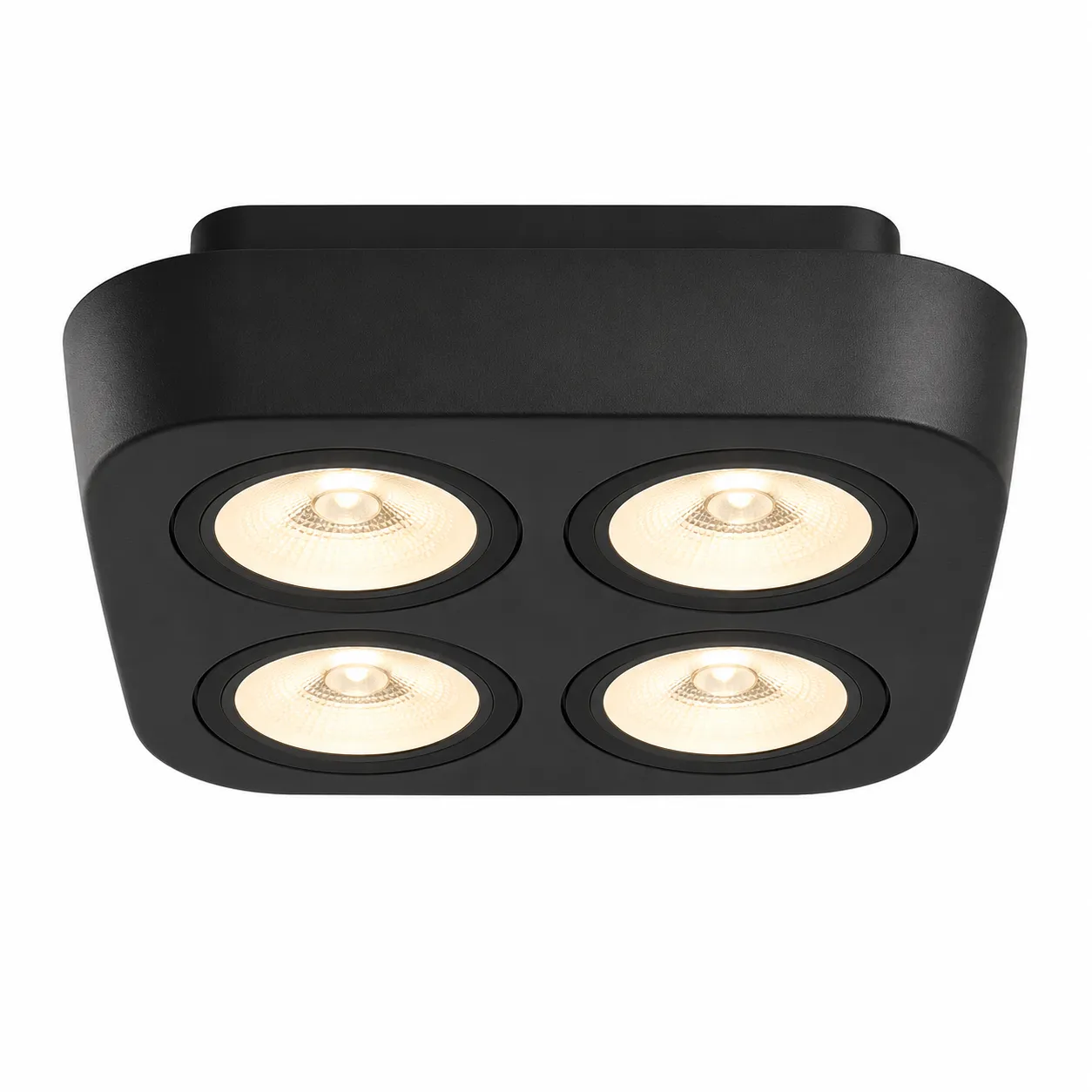

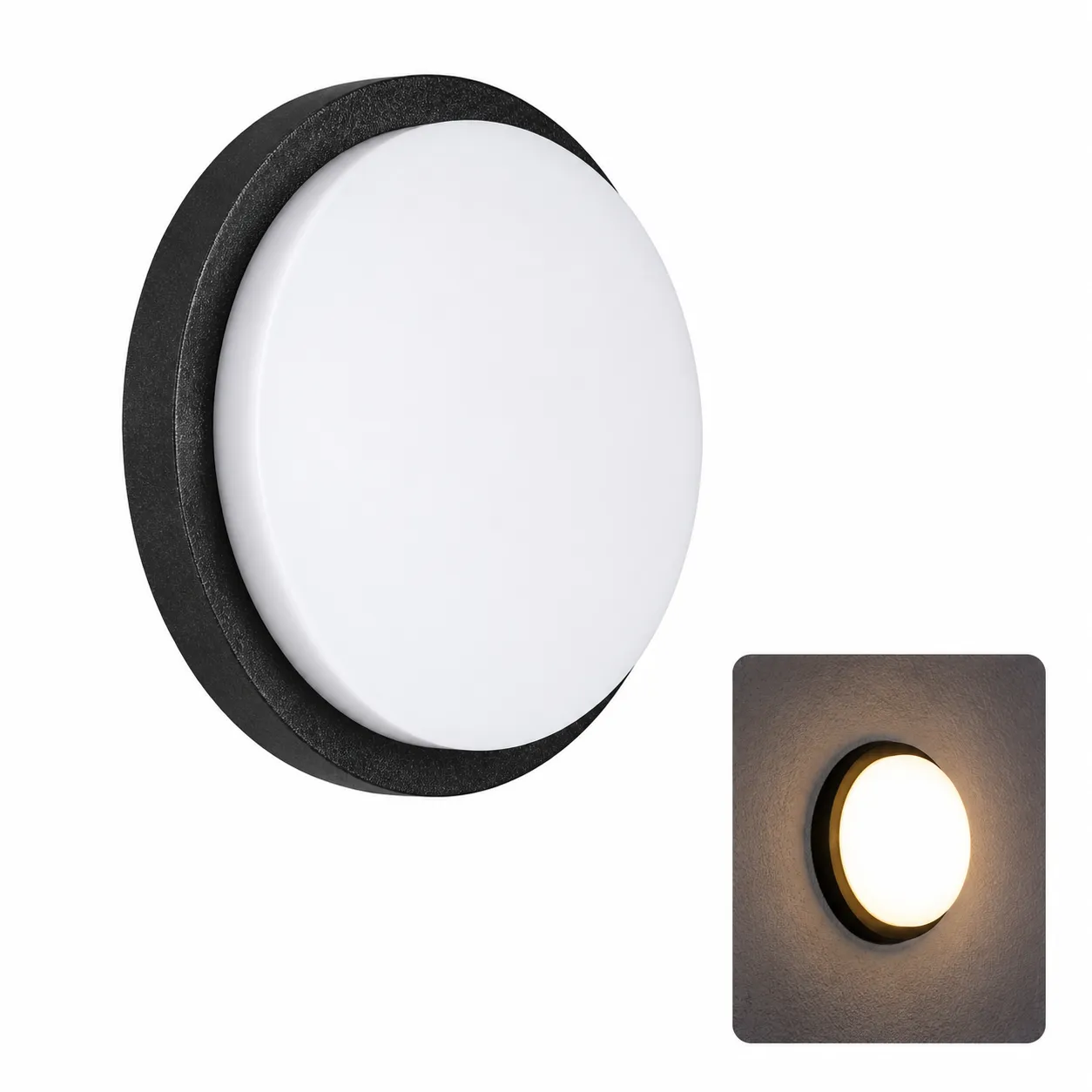

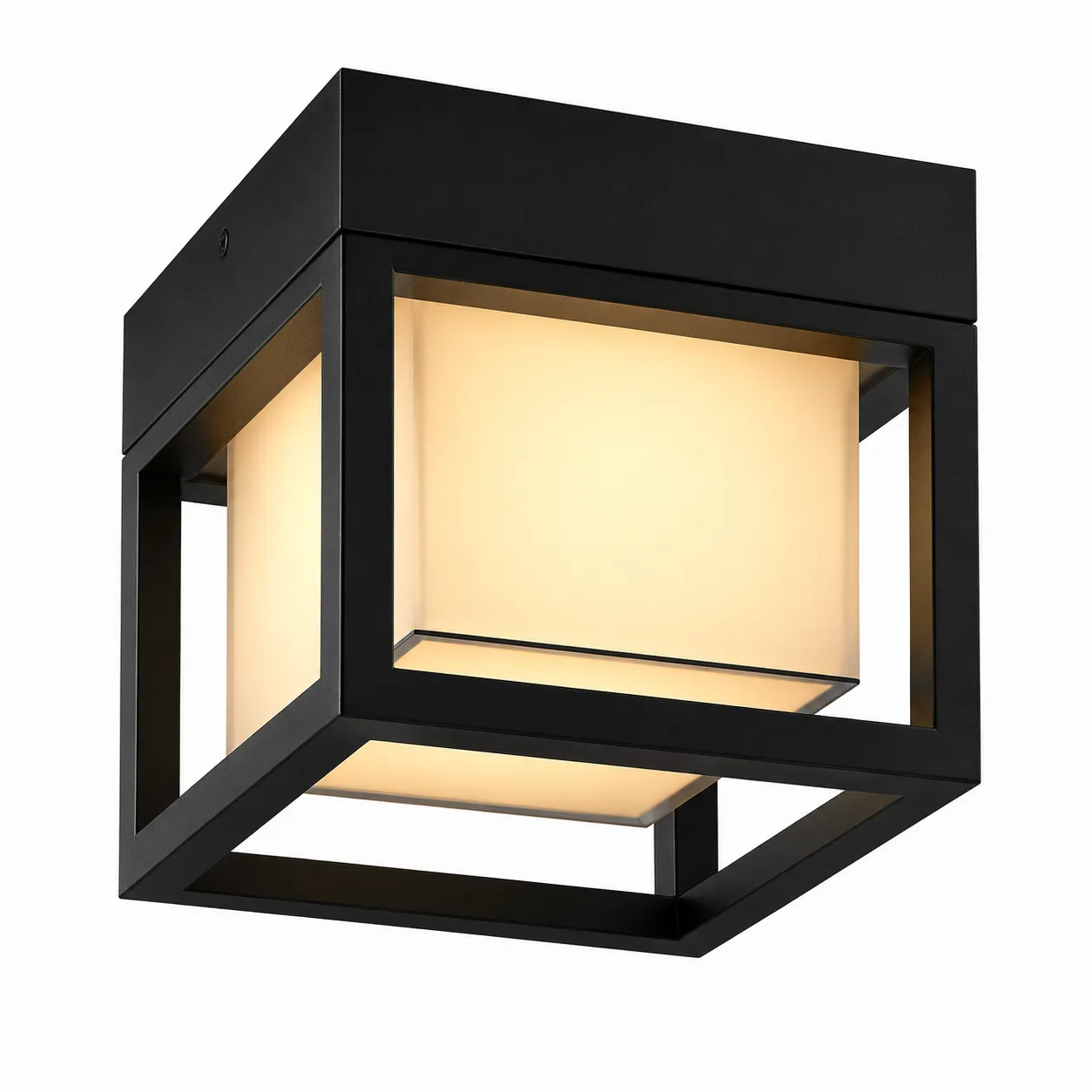

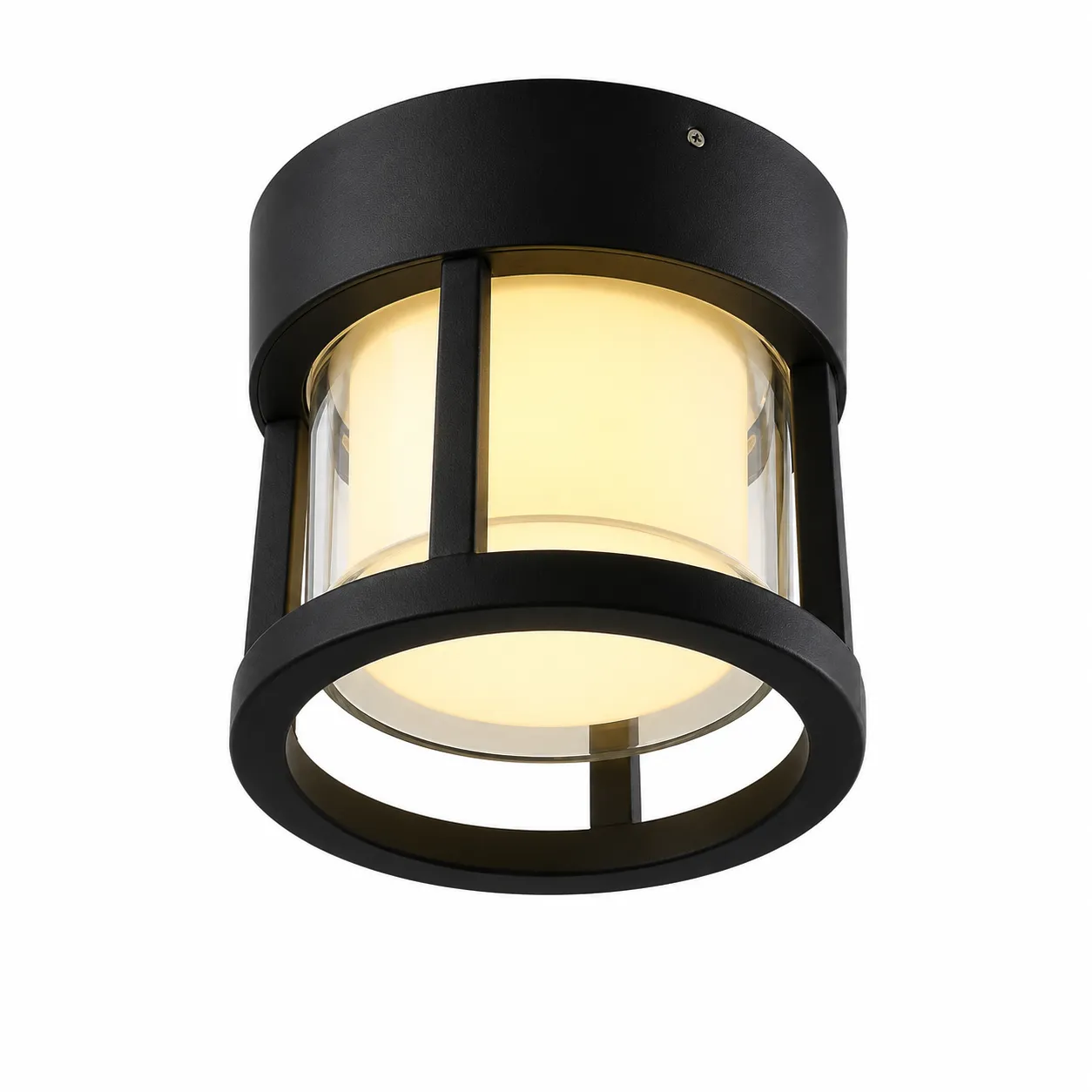

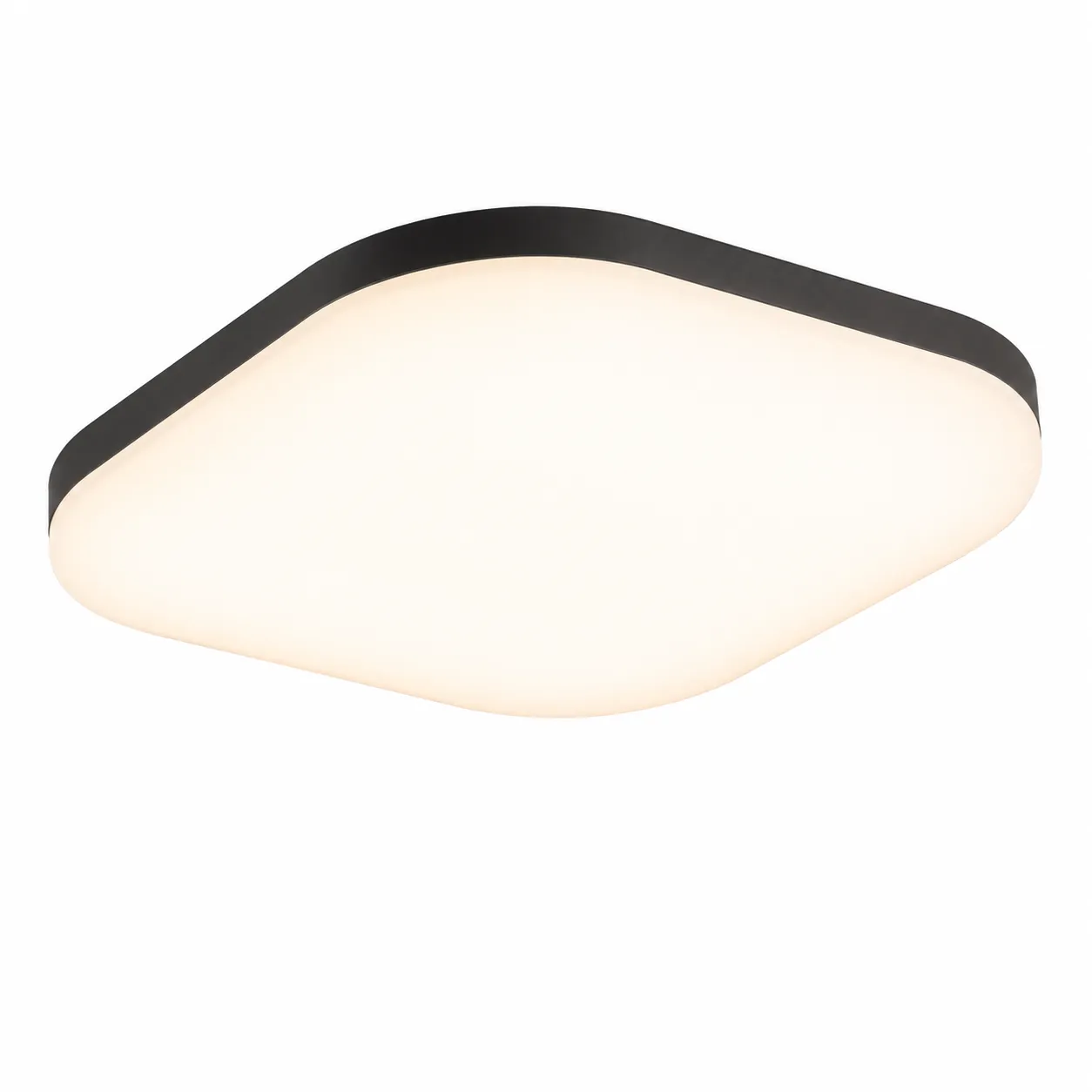

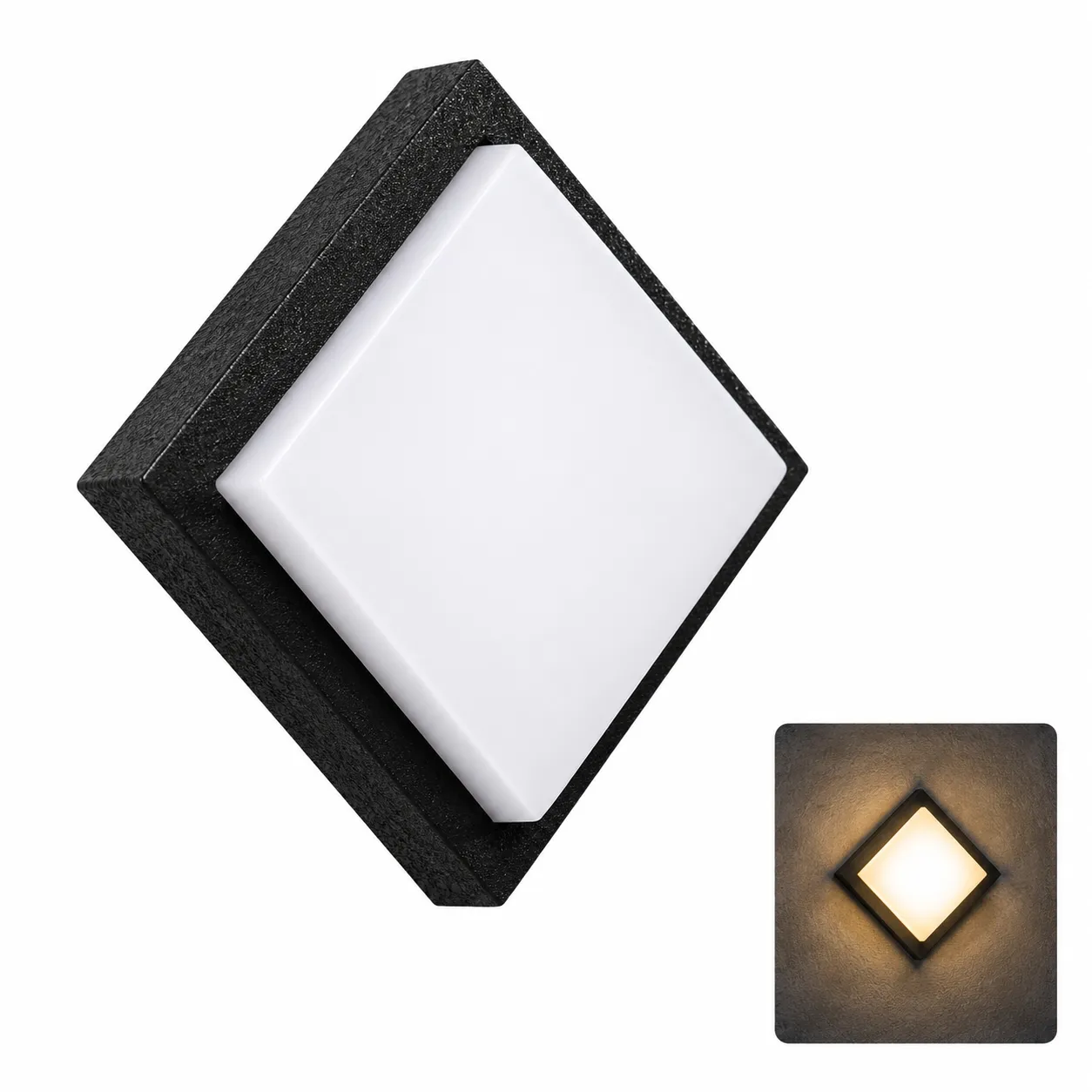

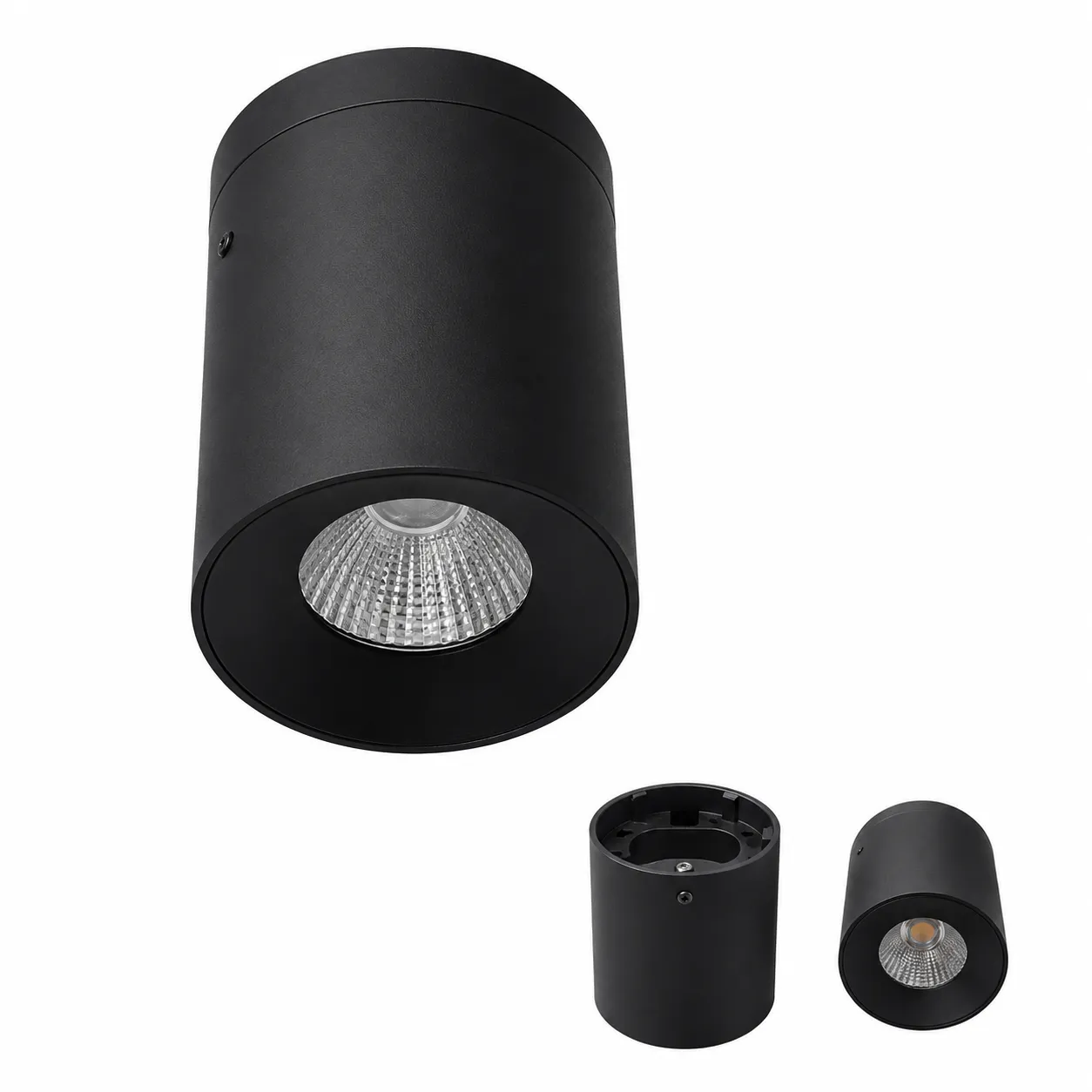

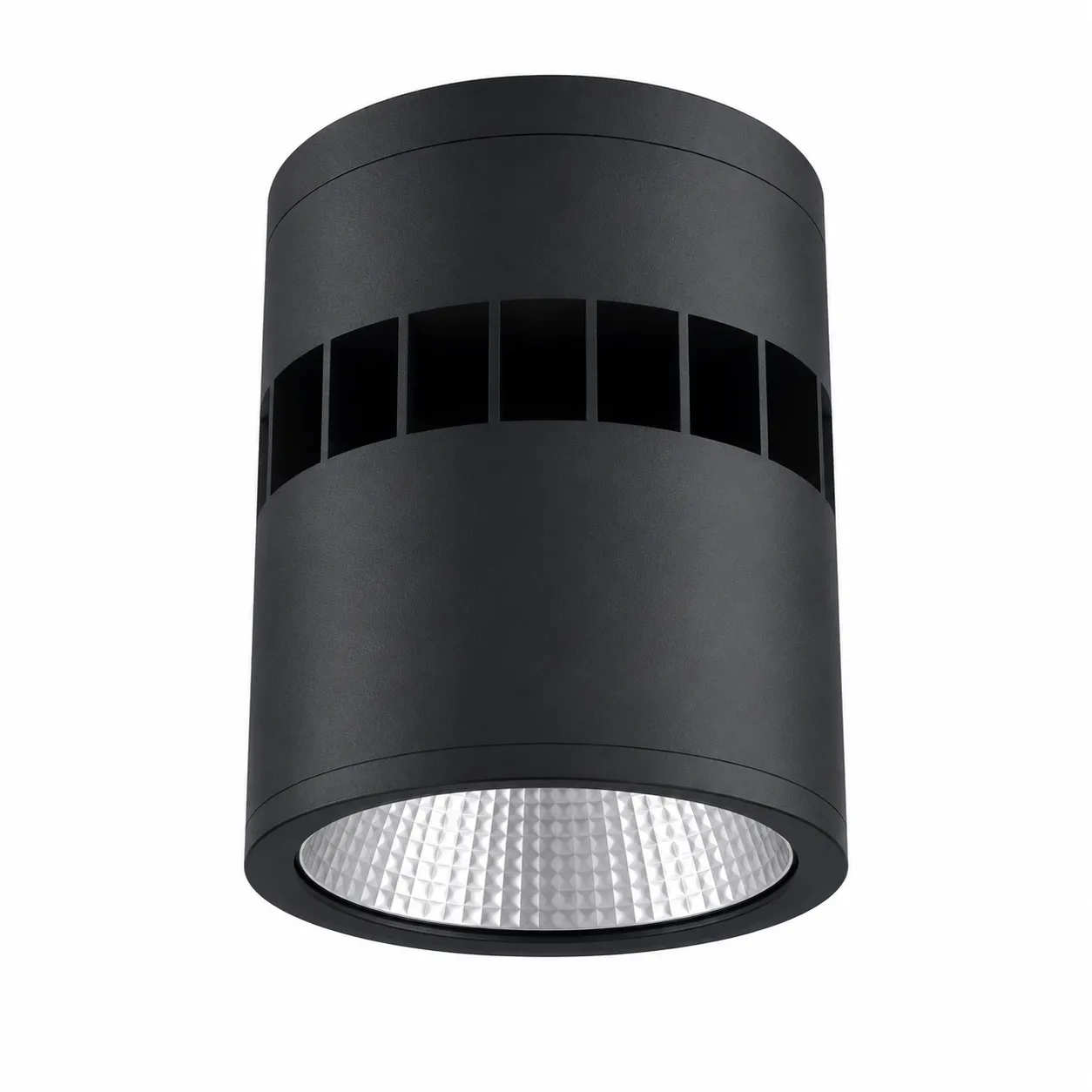

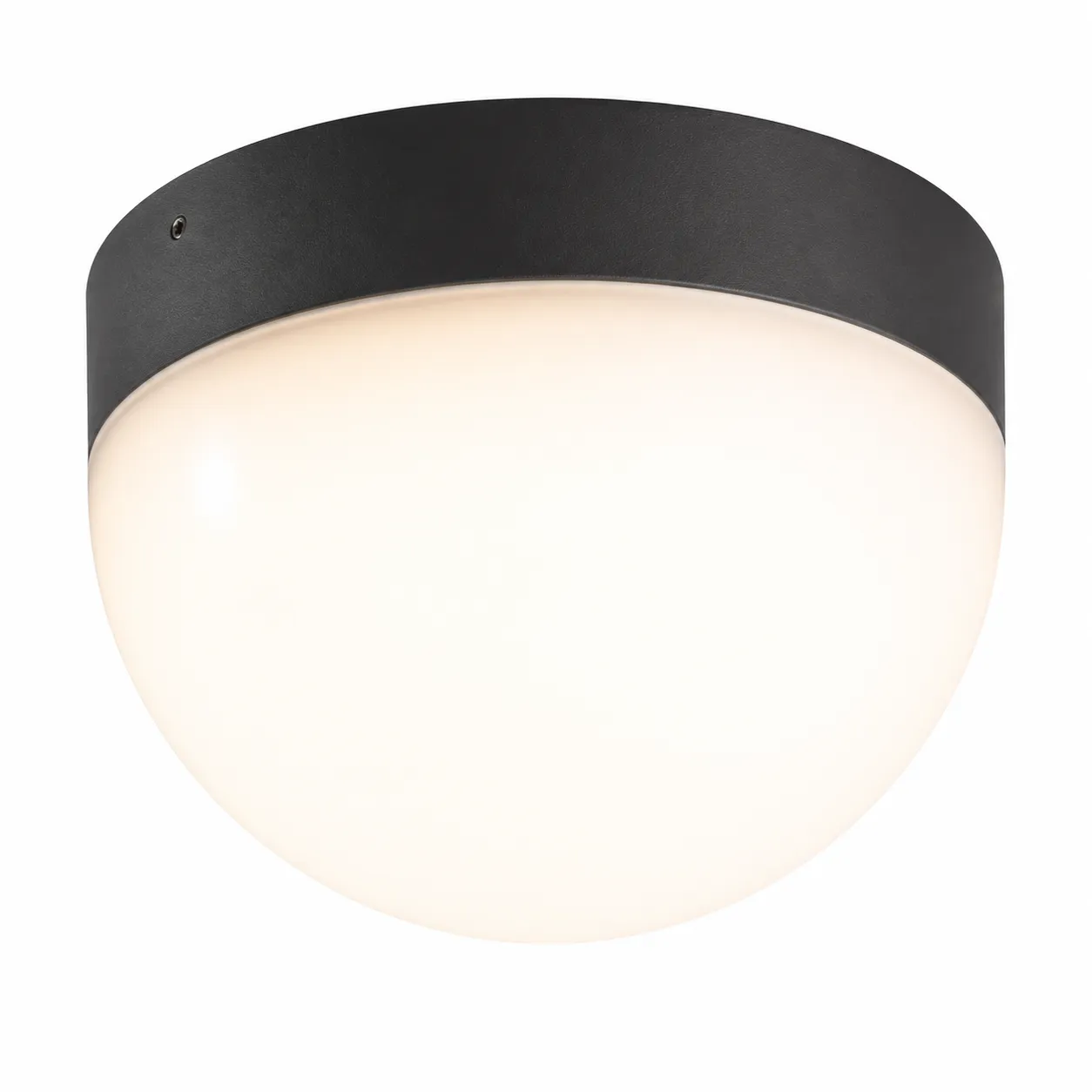

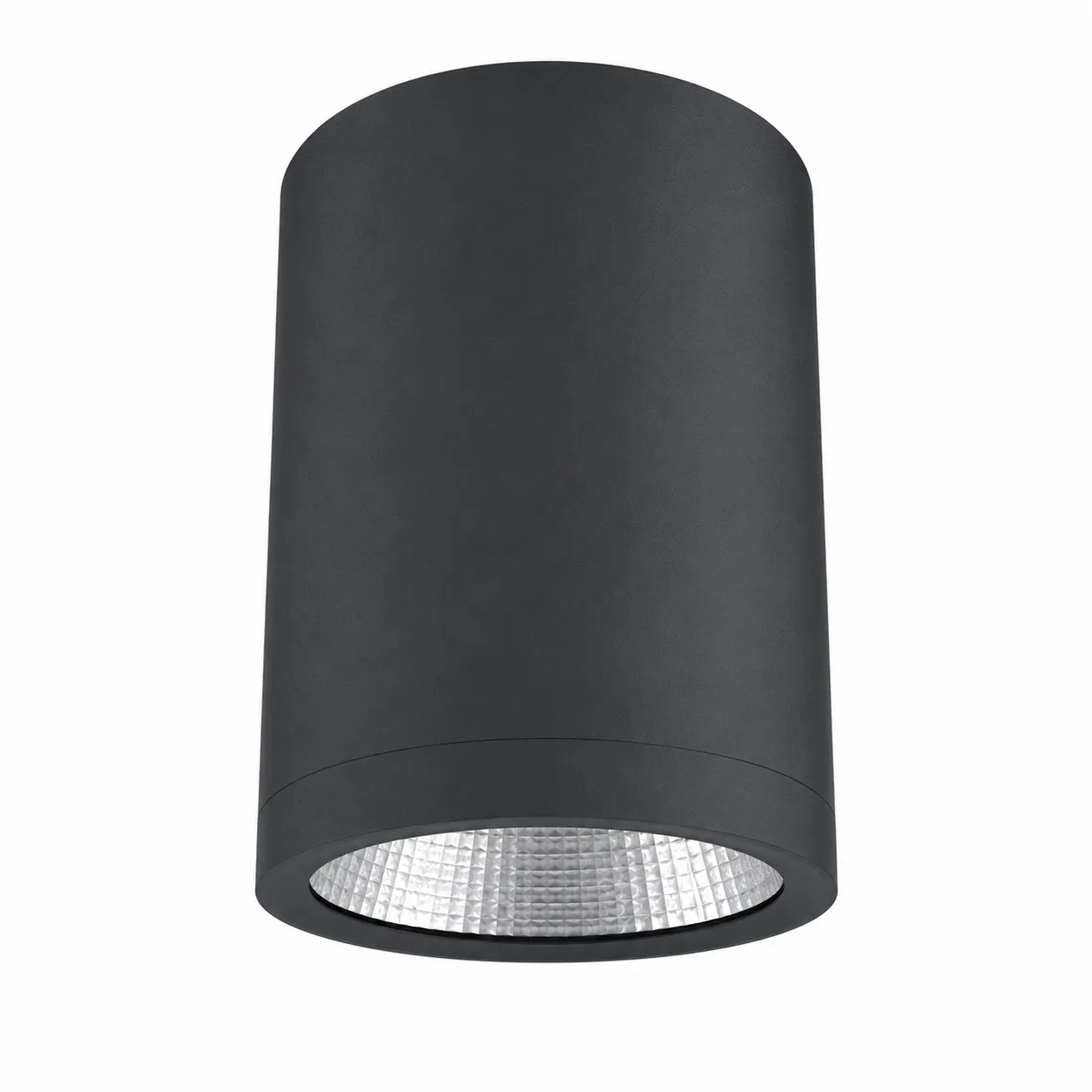

All 16 models.

Tap any model for the full specifications — wattage, beam angle, brightness, dimensions, weatherproof rating and LED source. Colour temperature and colour accuracy confirmed at quotation.

FAQs

Common buyer questions.

Quick answers to the questions we hear most often about this range.

Where are outdoor surface ceiling lights used?

Under porches, canopies, covered walkways, balcony soffits and car-park ceilings — anywhere there is an overhead surface but insufficient depth to recess a fixture. They are the outdoor equivalent of a surface downlight.

What IP rating do soffit-mounted fixtures need?

IP54 is usually sufficient under a genuinely sheltered soffit. Use IP65 for open canopies and anywhere driving rain can reach the fixture, which in monsoon conditions is most positions that are not fully enclosed.

How far apart should soffit lights be spaced?

Roughly 1 to 1.5 times the mounting height apart for even coverage. Under a 3-metre canopy that means about 3 to 4.5 metres between fixtures — closer if the surface below needs an even lit appearance rather than pools of light.

Can these fixtures be used in a car park?

Yes, provided the IP rating suits the exposure and the fixture carries an appropriate impact rating for the mounting height. For parking areas, also check the fixture is rated for the ambient temperature range, which can be high in an enclosed deck.
